JGX-1F
加入时间：
| 产品信息 | |
| 型号 | JGX-1F |

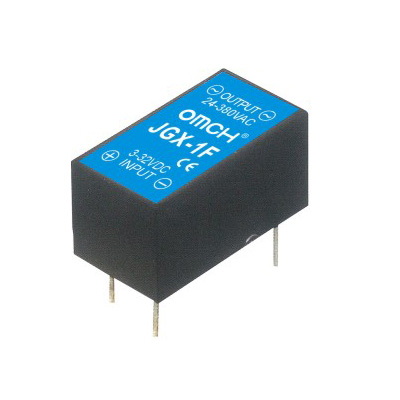

| 产品图片 |
|

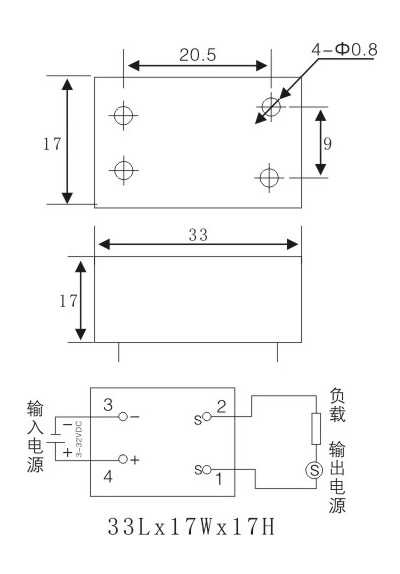

| 尺寸 |
|
| 负载电流Load Current | 1A,3A,5A |
| 负载电压Load Voltage | 24-380VAC |
| 控制电压Control Voltage | 3-32VDC |
| 控制电流Control Current | DC4-12mA |
| 通态压降On Voltage | ≤1.5V |
| 通态漏电流 Off Leakage Current | ≤1.5mA |
| 断态时间On-off Time | ≤10ms |
| 介质耐压Dielectric Strength | 1500VAC |
| 绝缘电阻Insulation Resistance | 500MΩ/500VDC |
| 环境温度Ambient Temperature | -25℃~+70℃ |
| 安置方式：Mounting Methods | 印刷版式PCB |
| 工作指示The Work Instructions |
|
| 重量Weight | 18g |
